Description

Kennel Clad Premium Insulated Guillotine Doors

Unmatched Durability and Insulation

Upgrade your kennel with the Kennel Clad Premium Insulated Guillotine Door by Security Boss Manufacturing. Designed for heavy use and extreme weather conditions, this door offers superior insulation, durability, and energy efficiency to create a comfortable, cost-effective environment for kennels.

Key Features & Benefits

✅ Superior Insulation: A 1-inch foam core enclosed between 18-gauge aluminum sheets keeps kennels warm in winter and cool in summer.
✅ Reinforced Structure: The custom C-Channel perimeter frame adds strength while allowing for easy installation with most kennel setups.
✅ Advanced Weather Sealing: Offset fin/brush seals prevent drafts and keep temperatures stable, reducing energy costs.
✅ Concealed Floor Seal: Maintains airtight insulation while protecting against wear, pet damage, and heat loss.
✅ Heavy-Duty Side Rails: Engineered to resist warping and deformation, ensuring smooth operation even in high-traffic areas.
✅ Energy Efficiency & Cost Savings: Designed to minimize heating and cooling needs, leading to lower utility bills for kennel operators.
✅ Built for Extreme Conditions: Performs reliably in scorching heat and freezing temperatures, keeping pets comfortable year-round.

Why Choose Kennel Clad Guillotine Doors?

✔ Unmatched durability for high-traffic kennel environments
✔ Minimal maintenance for long-term performance
✔ Industry-leading insulation to maximize comfort & efficiency

Upgrade your kennel today with the ultimate in strength, insulation, and reliability!

Installation

Guillotine Kennel Door Installation Instructions - PDF

Each Kennel Door comes with complete mounting hardware:

• 2- Screw in hook-pulley assemblies
• 6- Tapcon screws and mollies (for wood, block or concrete walls)
• 2- Cable clamps
• 20 Ft. high strength, 7x7 stainless steel aircraft cable coated in durable black PVC (480lb. test)
• 1- "S" hook

Size Guide

Specifications

Materials:

• ½” Extruded Aluminum C-Channel (around perimeter)
• 18 Gauge Sheet Aluminum (x2) (front & back)
• 1" EPF (insulating foam core)
• Rubber floor seal gasket (bottom edge)
• Fin-Pile Brush Seal (back top edge)
• Eye Bolt (top front centered)

Hardware/Included:

• 7x7 Stainless Steel Aircraft Cable - (20ft)

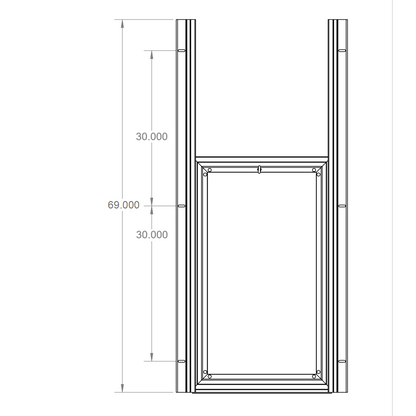

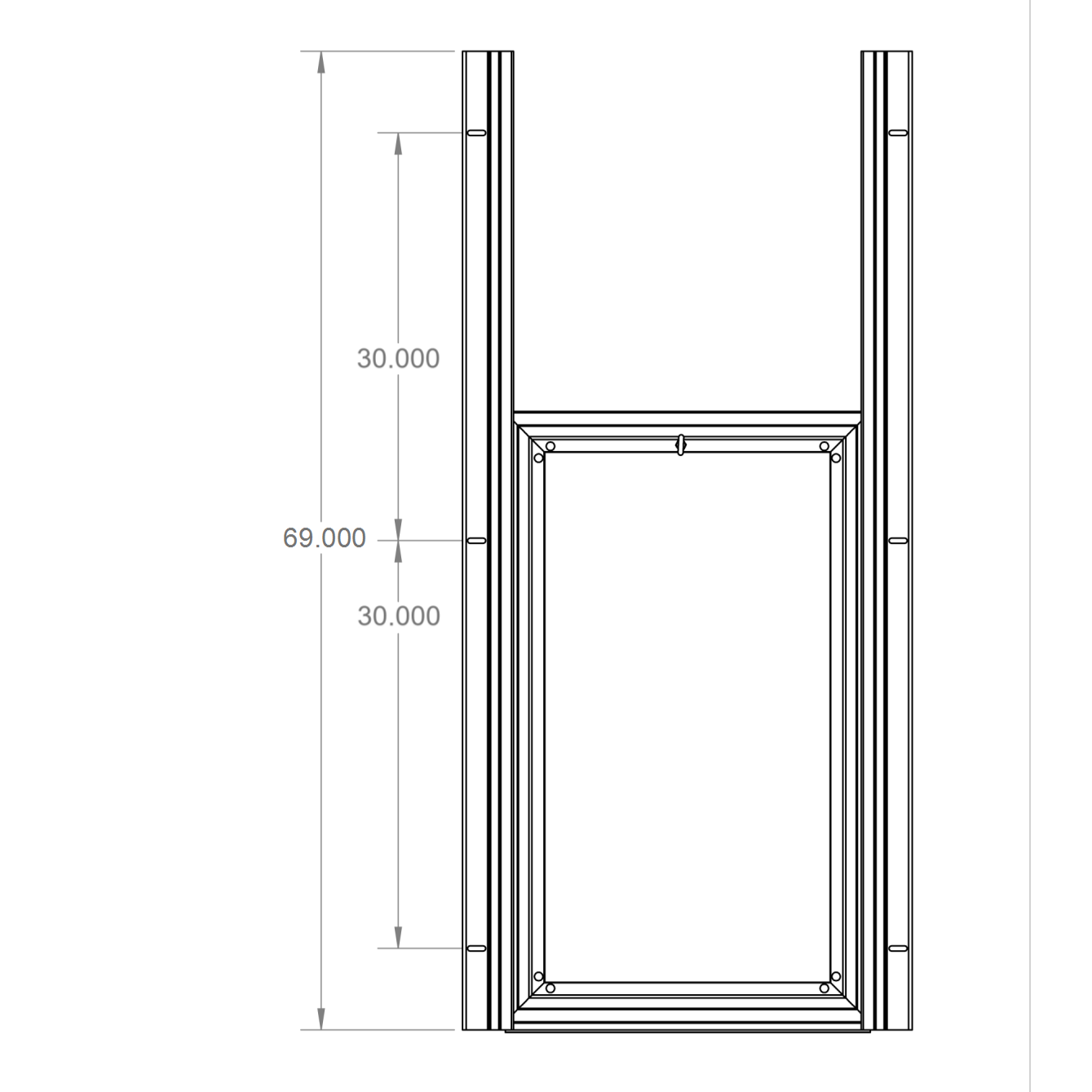

• 69” Mill Kennel Rails (x2) (Extruded Aluminum 6063-T6)
• Large Screw Pulleys (x2)
• Tapcon Screws (x6)
• S-hook (x1)

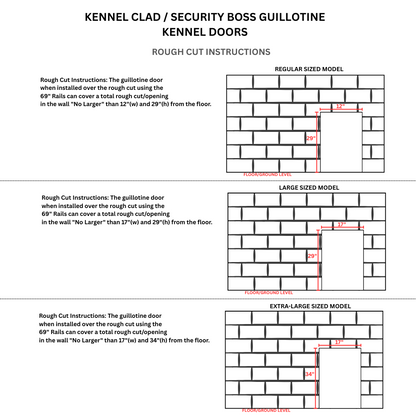

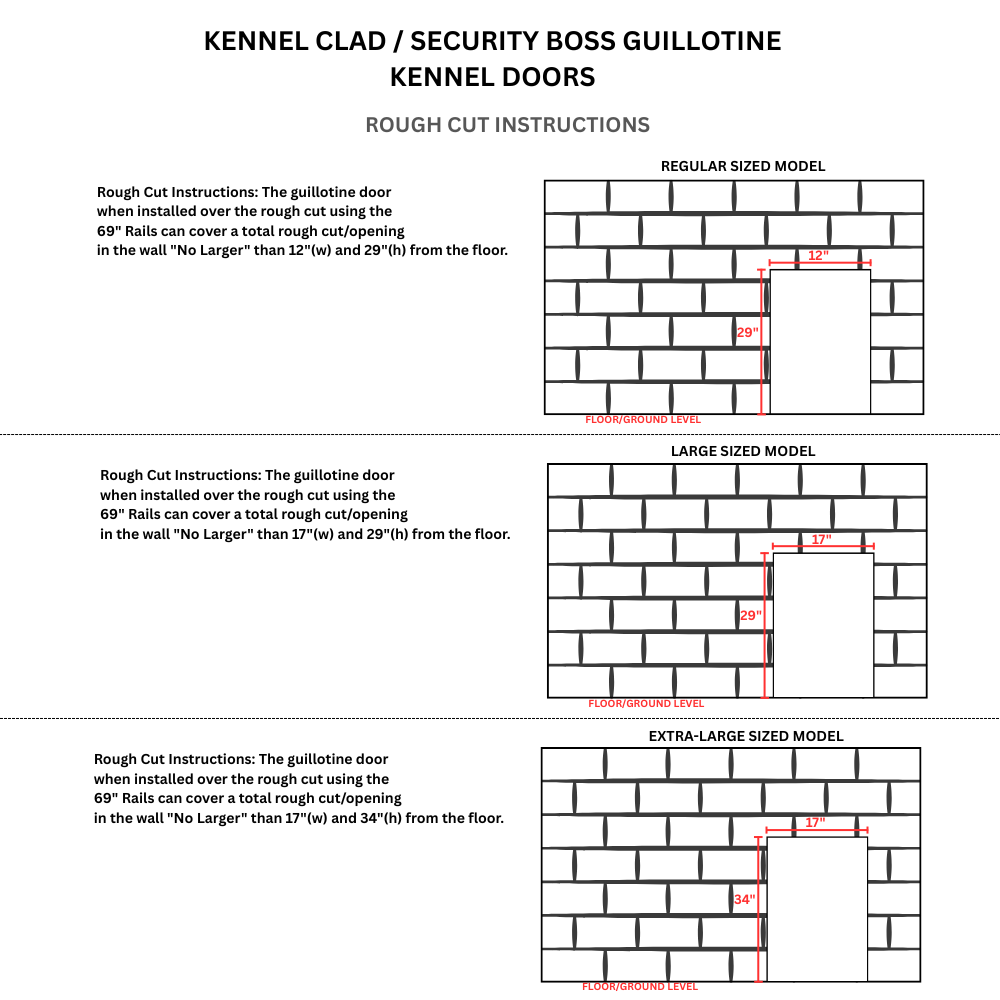

Sizes:

• Regular - 12”(w) x 29”(h)
• Large - 17”(w) x 29”(h)
• Extra Large - 17”(w) x 34”(h)
